Question:
What are the Exterior Projection 500 External Screw Torque Values?
Answer:
Note: All values are +/- 10%
| Top Cover M6*25 hexagon socket screw 19 Kgf cm / 1.86 Nm / 1.37 lb ft
|
|
| Lens Cover M6*25 hexagon socket screw 19 Kgf cm / 1.86 Nm / 1.37 lb ft
|
|

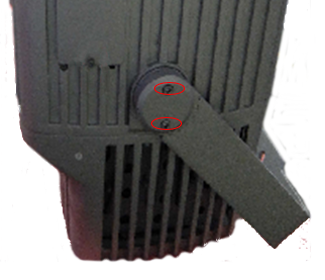

| Hanging Bracket M6*25 hexagon socket screw 19 Kgf cm / 1.86 Nm / 1.37 lb ft
|
|
| Rear Plate M6*14 hexagon socket screw (Circles) 18 Kgf cm / 1.77 Nm / 1.30 lb ft
|
|
| Heatsink Shield M6*25 hexagon socket screw (Squares) 19 Kgf cm / 1.86 Nm / 1.37 lb ft
|
|
| Display Panel M4*10 hexagon socket screw 8 Kgf cm / 0.78 Nm / 0.58 lb ft
|
|
