Using Soundweb London in Dante Domain Manager Without AES67

Rating

BSS DANTE FIRMARE VERSION 4.2.3.13 PRODUCT VERSION 1.2.7.0 NOTICE TO DDM USERS

The AES67 parameter for the Soundweb London device in Audio Architect must be disabled when the device is enrolled in a Domain. This applies to all of the clocking modes in Dante Domain Manager [DDM] except AES67. If you require AES67 Clocking Mode in a domain, instructions can be found here.

Soundweb London Settings

Update the Firmware

There is a specific build of firmware for using Soundweb London in DDM without AES67. Download the firmware in this article [v1.2.7.0] from the link on the right. --->

Import the Dante Firmware File for Product Version 1.2.7.0 into Dante Updater.
Update the Firmware on Devices used in the Domain.

Device Settings

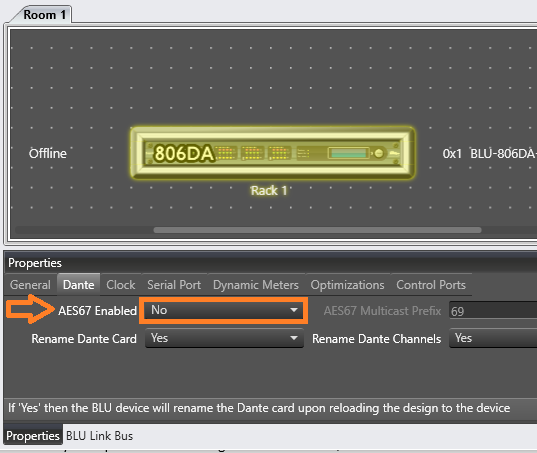

The AES67 parameter is found under the device properties in Audio Architect.
In Audio Architect, single click twice to highlight the Device in the rack.
Select the Dante Tab.
For AES67 Enabled select No.
Go Online and load the devices.

Using Soundweb London in Dante Domain Manager Without AES67 Picture1.png

This must be done for each Dante device in the Audio Architect file.

Dante Domain Manager Settings

This parameter is found under the Domain Parameters within Dante Domain Manager.

Note: This setting must match between Audio Architect and the setting in DDM for this Domain. Having a mismatch will affect connectivity in Dante Controler and result in loss of audio.

Downloads

SoundwebLondonDanteFirmware4.2.3.13v1.2.7

Product

Soundweb London

Topic

Firmware
