Factory Reset for JBL Powered Speakers

Rating

Use the following procedures to Factory Reset your powered speaker:



EON 600 series

With the unit powered OFF:

Press and hold BOOT and EQ+ while pressing and holding power ON,  continue to hold until all EQ Presets Flash.

Capture 1.JPG

EON710, EON712 & EON715

With the unit powered ON:

Press and hold CH1 and CH2 until the LCD powers off.

Capture 2.JPG


EON718S

With the unit powered ON:

Press and hold POWER and BACK until all LEDs Flash.

Capture 3.JPG


EON ONE COMPACT

With the unit powered ON:

Press and hold PHANTOM and DUCKING until all Channels Flash.

 Capture 4.JPG


EON ONE MK2

With the unit powered On:

Press and hold MAIN and CH4 until all Channels Flash.

Capture 5.JPG


IRX108BT & IRX112BT

With the unit powered On:

Press and hold BLUETOOTH until Power and EQ Presets Flash.

Capture 6.JPG


IRX115S

With the unit powered On:

Press and hold X-OVER and POLARITY until all LEDs Flash, sub will power off.

Capture 7.JPG


PRX ONE

With the unit powered On:

Press and hold MASTER and BACK until all Channels Flash.

Capture 8.JPG

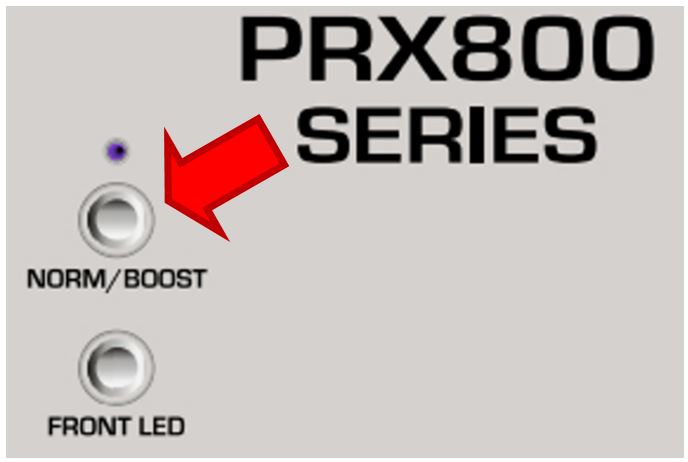

PRX800 Series

With the unit powered OFF:

Press and hold the Upper Left Button (NORM/BOOST, MAIN/MON or POLARITY) while pressing and holding power ON,  continue to hold for 5 seconds.

 Capture 9.JPG

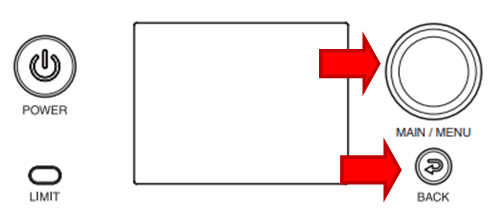

PRX900

With the unit powered ON:

Press and hold Main/Menu and BACK until the LCD screen turns off .​

Factory Reset for JBL Powered Speakers Picture10a.png

7 SERIES, 708P and 705P

With the unit powered OFF:
Press and hold BACK and MENU
While pressing and holding power ON, continue to hold until “FACTORY_RESET" appears on the LCD Screen.

Factory Reset for JBL Powered Speakers Picture11.png
